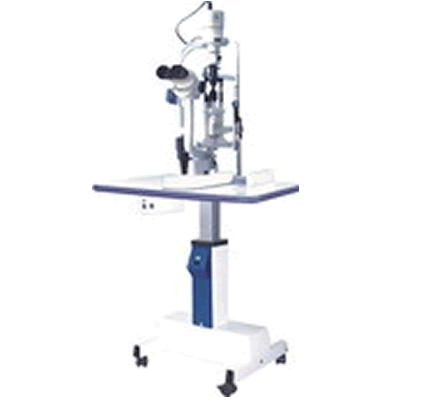

YZ5G Slit Lamp Microscope |
| Characteristics |
• This product covers all the functions and characteristics of YZ5F1 Slit Lamp Microscope.
• The diameter of the light spot and length can reach 14mm.
• Filter against UV
|
| Specification |
Microscope Type |
Parallel Stereoscope |
Magnification |
Five-step magnifications |
Eye piece |
12.5x |
Total Magnification and Diameter of Visual Field(mm) |
6x （ Φ33 ）.10x （ Φ22.5 ）.16x （ Φ14 ）.25x （ Φ8.8 ）.40x （ Φ5.5 ） |
Adjustable Range of Pupil Distance(mm) |
55~75 |
Adjustable Diopter |
-5D~+3D |
Slit Width(mm) |
0-14 adjustable |
Slit Height(mm) |
1~14 adjustable |
Slit Angle |
0~180° |
Slit Inclination |
5° .10° .15° .20° |
Light Spot Diameter (mm) |
Φ14 .Φ10 .Φ5 .Φ2 .Φ1 .Φ0.2 |
Filter |
heat absorption , grey ,red free , cobalt blue |
Illumination Bulb |
12V / 30W halogen bulb |
Voltage/frequency |
AC220V±10%/60Hz±1Hz. AC110V±10%/50Hz±1Hz |
Power |
58VA |
Electrical Safety Standard |
Conform to Standard IEC 601-1.Class1Type B |
Whole Packing Volume |
0.30m3 |
Carton Number |
2 |
Total Weight |
50kg |
|
| Accessories |
Applanation Tonometer (R type and T type), Measuring Eyepiece, Beam Splitter, CCD Adaptor , CCD Camera, Teaching Tube, etc |
|
|
|
