EL Series Shadowless Operation Lamp

•  Ideal illuminating equipment widely used in various surgical operations.
•  All-closed and streamlined design of the lamp head sufficiently meets the high sterilization and purification standard.
•  The integral reflection optical system by CAD/CAM, offers illumination depth up to 600mm and strengthened color rendering
   with color-temperature balance, applicable to cerebral and thorax surgery.
•  Soft light of the lamp with ripple-like surface made of bulletproof plastic.
•  8 luminance levels to select through CNC system with memory function while working stably among AC180V-250V.

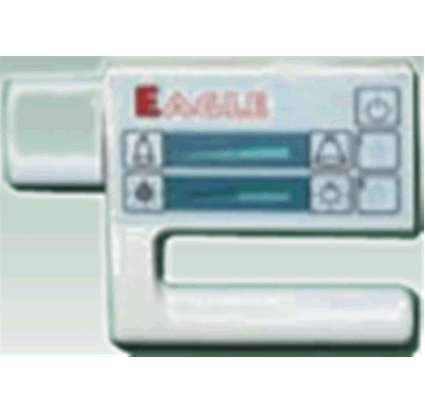

•  Backup lamp automatically switches on in 1/2s when the main lamp bummed out. The failure indicator of main or backup
    lamp on the handle panel alerts you to change it in time.
•  Soft starter, long lifetime of tungsten halogen bulb is up to 1000h.
•  Refined focusing system makes bulb change easier. Detachable handle can be sterilized under high temperature (≤134℃).
•  With the imported balancing arms, lamps move agilely and stably meeting any required height at any angle in operations.
•  Power system mounted on ceiling eliminates the trouble to install the wall control box.
•  Anti-burning materials of high reliability used according to the IEC standard.

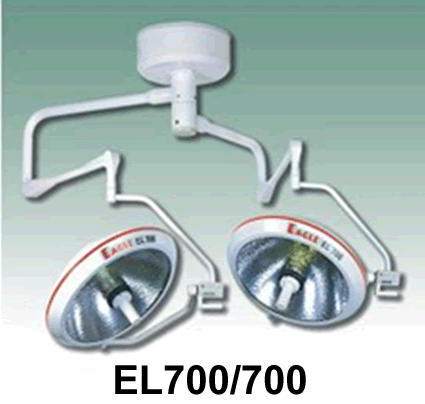

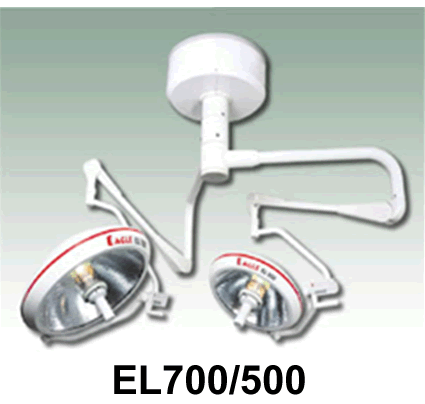

•  EL series can be configured into various types, such as 700/700, 700/500.

EL Digital Electric Focusing
•  The main and backup lamp switch the position automatically
•  The main lamp focusing electrically

•  Illuminance (Lux)：80,000~150,000
                                       80,000~150,000
•  Color temperature(K)：4500±250
•  Diameter of Spot(mm)：160~280
•  Illuminance Depth(mm)：≥600
•  Light Adjusting Steps：Eight-steps
•  Temperature Rise(℃)(Working area)：≤13/≤13
•  Temperature Rise(℃)(Patient Head)：≤2
•  Power Voltage：~220V/50Hz
•  Input Power(W)：400
•  Power of Bulb(W) 24V：150 /150
•  Automatic Switching：√
•  Lowest Height of Installation (mm)：2900

•  Illuminance(Lux)：60,000~120,000
                                     60,000~120,000
•  Color temperature(K)：4500±250
•  Diameter of Spot(mm)：160~280
•  Illuminance Depth(mm)：≥600
•  Light Adjusting Steps：Eight-steps
•  Temperature Rise(℃)(Working area)：≤12/≤12
•  Temperature Rise(℃)(Patient Head)：≤2
•  Power Voltage：~220V/50Hz
•  Input Power(W)：400
•  Power of Bulb(W) 24V：150 /150
•  Automatic Switching：√
•  Lowest Height of Installation (mm)：2900

•  Illuminance(Lux)：80,000~150,000
                                      60,000~120,000
•  Color temperature(K)：4500±250
•  Diameter of Spot(mm)：160~280
•  Illuminance Depth(mm)：≥600
•  Light Adjusting Steps：Eight-steps
•  Temperature Rise(℃)(Working area)：≤13/≤12
•  Temperature Rise(℃)(Patient Head)：≤2
•  Power Voltage：~220V/50Hz
•  Input Power(W)：400
•  Power of Bulb(W) 24V：150 /150
•  Automatic Switching：√
•  Lowest Height of Installation (mm)：2900

•  Illuminance(Lux)：80,000~150,000
•  Color temperature(K)：4500±250
•  Diameter of Spot(mm)：160~280
•  Illuminance Depth(mm)：≥600
•  Light Adjusting Steps：Eight-steps
•  Temperature Rise(℃)(Working area)：≤13
•  Temperature Rise(℃)(Patient Head)：≤2
•  Power Voltage：~220V/50Hz
•  Input Power(W)：200
•  Power of Bulb(W) 24V：150
•  Automatic Switching：√
•  Lowest Height of Installation (mm)：2900

•  Illuminance(Lux)：60,000~120,000
•  Color temperature(K)： 4500±250
•  Diameter of Spot(mm)：160~280
•  Illuminance Depth(mm)：≥600
•  Light Adjusting Steps： Eight-steps
•  Temperature Rise(℃)(Working area)： ≤12
•  Temperature Rise(℃)(Patient Head)： ≤2
•  Power Voltage： ~220V/50Hz
•  Input Power(W)：200
•  Power of Bulb(W) 24V：150
•  Automatic Switching： √
•  Lowest Height of Installation (mm)：2900

•  Illuminance(Lux)：60,000~120,000
•  Color temperature(K)： 4500±250
•  Diameter of Spot(mm)：160~280
•  Illuminance Depth(mm)：≥600
•  Light Adjusting Steps： Eight-steps
•  Temperature Rise(℃)(Working area)： ≤12
•  Temperature Rise(℃)(Patient Head)： ≤2
•  Power Voltage： ~220V/50Hz
•  Input Power(W)：200
•  Power of Bulb(W) 24V：150
•  Automatic Switching： √
