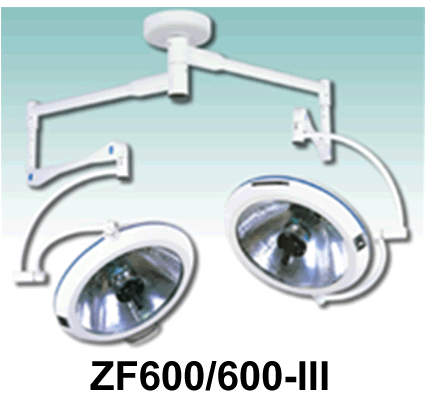

ZF 600 Series Shadowless Operation Lamp |
• Ideal illumination equipment widely used in various surgical operations
• The integral reflection optical system designed by CAD provides the enough deep illumination depth and the good color-
rendering index, especially to apply to the cerebral and thorax surgery.
• MTBF≥10000h for electric control system.

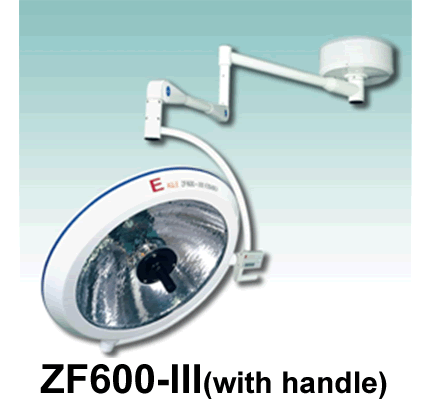

• ZF600 (with handle) have 8 luminance levels to select through CNC system with memory function while working stably
among AC180V-250V.
• ZF600 (with handle) have backup bulbs automatically switch on when needed. Invalidation indicators on handle panel show
the bulbs status to ensure timely replacement.

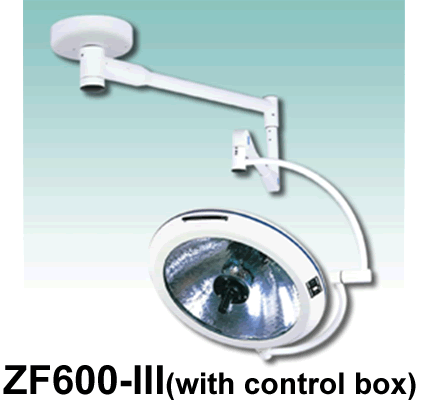

• Stepless dimmer available on ZF600 (with control box).
• The lifetime of tungsten halogen bulb is up to 1000h.
• Improved focusing system operates reliably and bulb change is easier.
• The agile balance arm with good stability, little starting effort applies to urinology and gynecology operation.
|
 |
• Illuminance (Lux): ≥60,000/≥60,000
• Color Temp: 4500±500
• Diameter of Spot (mm): 170~220
• Illumination Depth (mm): ≥500
• Light Adjusting Steps: Eight-steps
• Power Voltage: ~220V/50Hz
• Input Power (W): 400
• Power of Bulb(W) 24V: 150/150
• Automatic Switching: Auto
• Lowest Height of Installation (mm): 2900
|
 |
• Illuminance (Lux): ≥60,000/≥60,000
• Color Temp: 4500±500
• Diameter of Spot (mm): 170~220
• Illumination Depth (mm): ≥500
• Light Adjusting Steps: Stepless
• Power Voltage: ~220V/50Hz
• Input Power (W): 440
• Power of Bulb(W) 24V: 150/150
• Automatic Switching: Manual
• Lowest Height of Installation (mm): 2750
|
 |
• Illuminance (Lux): ≥60,000
• Color Temp: 4500±500
• Diameter of Spot (mm): 170~220
• Illumination Depth (mm): ≥500
• Light Adjusting Steps: Eight-steps
• Power Voltage: ~220V/50Hz
• Input Power (W): 200
• Power of Bulb(W) 24V: 150
• Automatic Switching: Auto
• Lowest Height of Installation (mm): 2900
|
 |
• Illuminance (Lux): ≥60,000
• Color Temp: 4500±500
• Diameter of Spot (mm): 170~220
• Illumination Depth (mm): ≥500
• Light Adjusting Steps: Stepless
• Power Voltage: ~220V/50Hz
• Input Power (W): 220
• Power of Bulb(W) 24V: 150
• Automatic Switching: Manual
• Lowest Height of Installation (mm): 2750
|
| |
ZF Series Shadowless Operation Lamp |
• Ideal illumination equipment, applicable to various operations.
• Integral reflected light channel structure by CAD design, good focusing depth and color rendering, applicable to cerebral
surgery and thorax surgery.
• Supplementary bulb is automatically switched into use when the primary bulb fails.
• MTBF≥10000h for control system of electric apparatus.
• Soft starter for diminish dash of initial current and extend lifetime of bulb.
• The lifetime of tungsten halogen bulb is up to 1000h.
• The improved focusing system is more safe to use and more easy to change the bulb.
• New type balance arm with good stability little starting effort and agile movement, applicable to urinology and gynecology
operation; and height of installation (2750-3100mm) applicable to modern operating room.
• Various configurations to meet the different illumination needs of surgery:

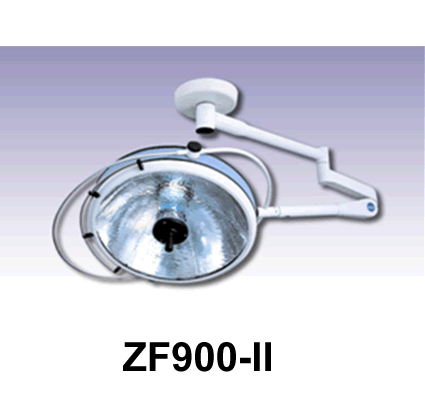

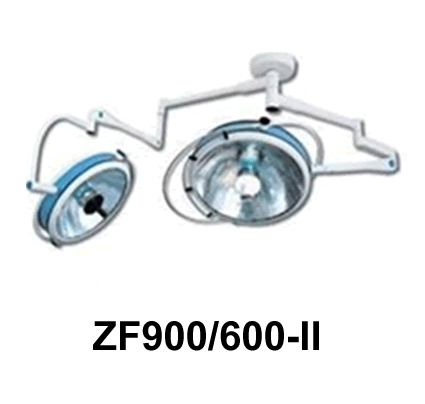

ZF900/600-II, ZF900-II

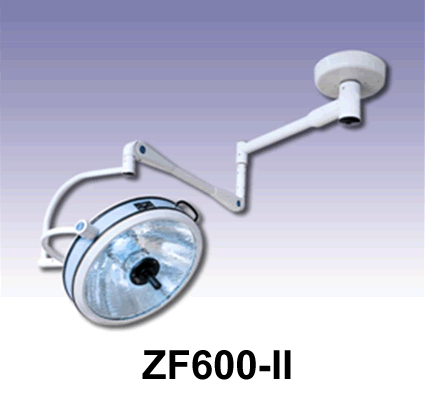

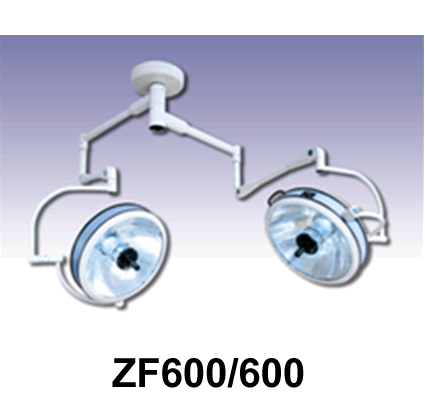

ZF600/600-II, ZF600-II

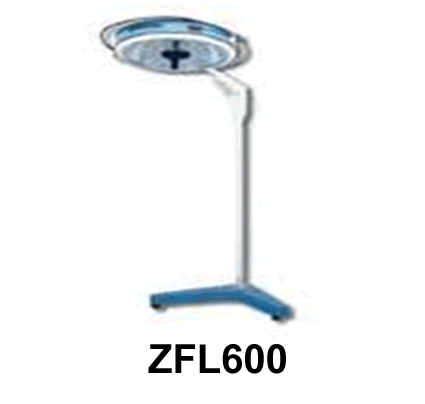

• ZFL600-II standing surgical lamp for provide auxiliary illumination of minor operation. Use air balance technology for pull
lamp head dexterously and move “V” support stably.
|
 |
• Illuminance (Lux): ≥100,000/≥60,000
• Color Temp: 4500±500
• Diameter of Spot (mm): 100~250
• Illumination Depth (mm): ≥500
• Power Voltage: ~220V/50Hz
• Input Power (W): 570
• Power of Bulb(W) 24V: 250/150
• Automatic Switching: Auto
• Lowest Height of Installation (mm): 2750
|
 |
• Illuminance (Lux): ≥100,000
• Color Temp: 4500±500
• Diameter of Spot (mm): 100~250
• Illumination Depth (mm): ≥500
• Power Voltage: ~220V/50Hz
• Input Power (W): 350
• Power of Bulb(W) 24V: 250
• Automatic Switching: Auto
• Lowest Height of Installation (mm): 2750
|
 |
• Illuminance (Lux): ≥60,000/≥60,000
• Color Temp: 4500±500
• Diameter of Spot (mm): 100~250
• Illumination Depth (mm): ≥500
• Power Voltage: ~220V/50Hz
• Input Power (W): 440
• Power of Bulb(W) 24V: 150/150
• Automatic Switching: --
• Lowest Height of Installation (mm): 2750
|
 |
• Illuminance (Lux): ≥60,000
• Color Temp: 4500±500
• Diameter of Spot (mm): 100~250
• Illumination Depth (mm): ≥500
• Power Voltage: ~220V/50Hz
• Input Power (W):220
• Power of Bulb(W) 24V: 150
• Automatic Switching: --
• Lowest Height of Installation (mm): 2750
|
 |
• Illuminance (Lux): ≥60,000
• Color Temp: 4500±500
• Diameter of Spot (mm): 100~250
• Illumination Depth (mm): ≥500
• Power Voltage: ~220V/50Hz
• Input Power (W): 185
• Power of Bulb(W) 24V: 150
• Automatic Switching: --
• Lowest Height of Installation (mm): --
|
|
|
