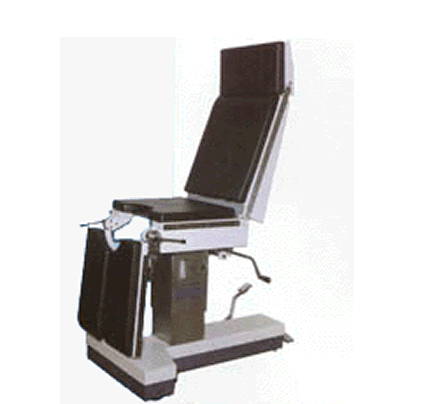

JT-1A Mechanical Operating Table |
|
The mechanical operating table model JT -1A is suitable for operating on head,neck, abdomen,chest,legs and so on in general surgery as well as gynaecological and urological surgery in hospitals and clinics. |
| Features |
• The new type of oil pump adopted in hydraulic pressure elevating and lowering system makes elevation very easy,the other
operations are made manually.
• It has a compact and reasonable structure,and a superior performance and quality.
• The protective cove for table column is made of stainless steel.
• It's designed with new and fine art on the table's outline which is easy for cleaning and sterilization.
• All accessories can be detached with clamps.
• By switching brake the table is convenient for transportation,moving and cleaning.
• A new design of handle which is flexible is used for most of adjustments.
• All adjustment are to be carried out at the left side of the table to make operations at most convenient.
• A unique features of smooth elevation. |
| Technical data |
• Table top:overall length 1930mm ,width 480mm height adjustment 710~ 910mm
• Head section adjustment+30~90°and detachable
• Back section:adjustment 0°~75°,
• Leg section:diverted range 0°~180°, adjustment 0°~90°and detachable.
• Foot section:
• diverted type,level with table top or vertical,and detachable 6.Trendlendenbury movement:+20°~15°
• Lateral tilt:+15° ~ -15°
• Kidney bridge:elevation up to 80mm and detachable |
| Accessories |
• Anaesthesia screen 1 set
• Body supports 1 set
• Body straps 1 set
• Knee crutches 1 set
• Handle
• Single-sheet arm rest 1 set |
| Optional accessories: |
| • Double-sheet arm rest 1 set
• Versatile head rest 1 set
• Head rest 1 set |
| Picture |
| |
|
