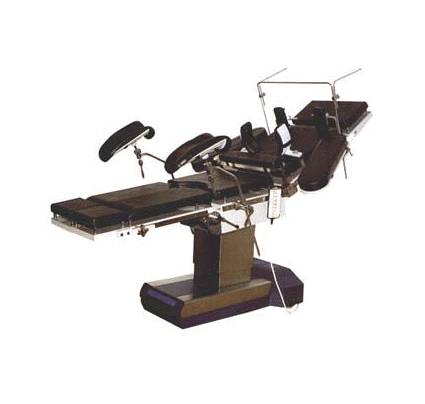

DT12-B Electric Operating Table

DT12-B serves as a multi-purpose operation table, suitable for thoracic abdominal surgery cerebral surgery,ENT,gynecology and obstetrics as well as urology surgery.

•  Integrated hydraulic.system ensures the reliability of the table.
•  Superior stainless steel housing for the basement and support system of the table makes cleaning and sterilization a easy
    mattress.Ergonomic design provides the table with a clearcut.All matress are cast and made from polyster rubber.
•  The back section of the table is movable,on which an elevator can be fit for the operation on kidney or gall-bladder.
•  The surfaces of the table are made of plexiglass,By putting the x-ray film container between the upper and bottom deck of
    the table,radiographic examination can be carried out without moving the patient.
•  All the clamps for fixing the accessories are detachable and easy to use .
•  With the head rest and the double-sheet arm rest ,which is optional accessories,the cerebral surgery and lateral surgery
   are convenient.

•  Table board:270× 480mm (L×W)
•  Height of table:minimum of height 650mm adjustment over 220mm
•  The lateral adjustment :-15°to+20°
•  Back section:adjustment up to +75°
•  Head section:upward up to 35°
•  downward up to 90°
•  Leg section abductable up to 180°(90°either side) down position up to 90° detachable.
•  Foot section level with or vertical to table board,detachable.
•  Elevator range of kindney bridge: ＞ 80mm
•  Power Supply:220V,50HZ
•  Electric motor:single phase ,370W 1400rpm

Optional accessories

•  Double deck arm rest

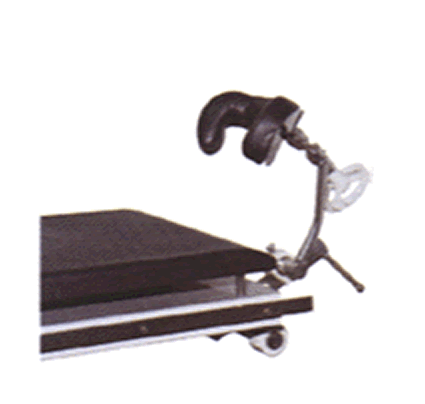

•  Neurosurgery head rest
