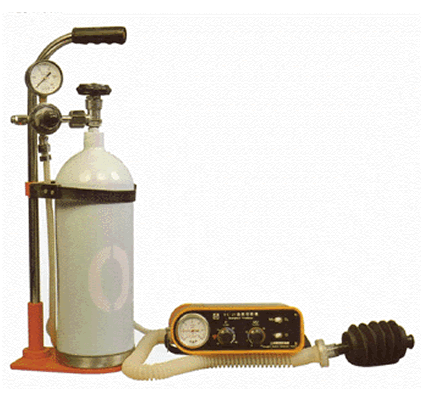

SC-J1 is a time cycled constant volume respirator for controlled mechanical ventilation in emergencies of all types.for respiratory rescue of accidents in mine traffic or industries,for artificial respiration during transportation of patients in ambulance,on ship,on aeroplanes or from operation room to intensive care unit.It can also be used for respiratory therapy with an attachable humidifier. The O2 concentration is adjustable to 55% or 100% To meet the needs of emergencies, the frequency and minute volume scales have three different colors for administering artificial respiration to infants,children and adults correspondingly.
|
Frequency |
MV |
Infant(green color) |
28 ～ 35bpm |
2~ 3.5L /min |
Child(blue color) |
18 ～ 28bpm |
3.5~ 7L /min |
Adult(brown color) |
10 ～ 18bpm |
7~ 18L /min |
With O 2 or compressed air as gas supply.no electricity is required. Small in size,light in weight.easy to carry and simple in operation. SC-J1 represents an ideal ventilator for all emergency cases. |
