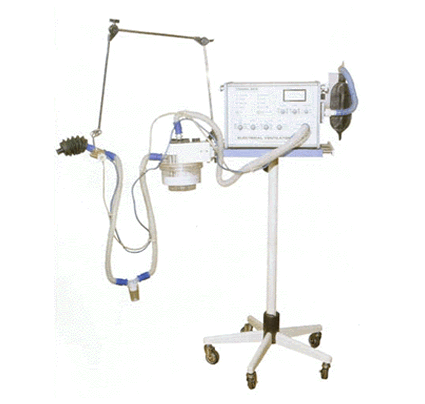

SC-5 ventilator is an electroniccontrolled electric-driven, time cyeled,volume constant ventilator for the ventilation administration and care to the patient of respiratory failure in emergency sited. during transportation of patient,in hospital or at home With a well designed cylinder pump system the ventilator is able to output a precise volume and saves the time for maintenance. Oxygen concentration in the inhaled gas can be adjusted through a oxygen enrichment kit connected to the gas take-in socket.The ventilator can also be furnished with humidifier,oxygen analyzer. trolley, arm support, etc. to extend clinical application. With internal battery keeps machine work another 120 minutes. |
• Ventilation modes:
(IPPV/Assist) (Pressure Cycled)
(SIMV) (Standby)
IPPV/Assist,SIMV,Pressure Cycled,Standby
• Ventilation frequency 8~40bpm
• SIMV frequency 2~10bpm
• Tidal volume 100~1500/ml
• Inspiratory time 0.5~3s
• Trigger sensitivity -1.0 ~+1.0kPa
• High Pressure alarm 1.5~6kPa
• Low Pressure alarm 0.4~3.4kPa
• Power supply AC 220V 50Hz and Internal battery 12V
• Power consumption 100W
• Dimension 36×32× 25.5cm （ H×W×L ）
• Weight 18kg |
