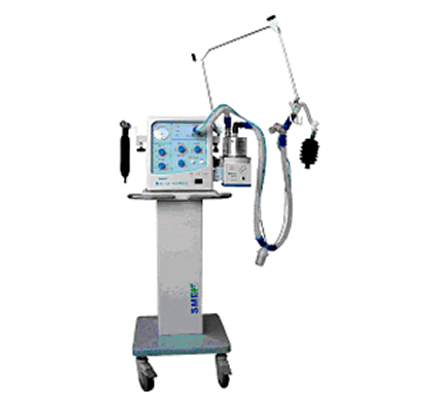

SC-5A Electrical Ventilator

SC-5A is a time electrical-driven, electronic-controlled, time cycled and volume constant ventilator for the respiration administration and therapy to the patient with ARDS or respiratory failure.

This ventilator configures two ventilation modes of IPPV and IPPV/ASSIST, and monitoring functions as high and low airway pressure, wrong setting and etc. The alarm is visible and audible. The ventilator is not only a state of multi-functions but also a great convenience in manipulation. Because of electrical-driven and electronic-controlled, the ventilator needs no compressed air, and the work is at low noise.

•  Ventilation modes: 　IPPV, IPPV/ASSIST
•  Frequency:　6 -- 60 cycles/second
•  I:E ratio: 　1:1, 1:1.5, 1:2, 1:3
•  Tidal volume: 　200 -- 1200 ml
•  Oxygen concentration :　21%~100%
•  High pressure alarm :　2.0 -- 6.0 KPa
•  Low pressure alarm :　0.4 -- 2.4 KPa
•  Trigger sensitivity: 　-0.2 KPa
•  PEEP: 　0~20 cmH2O (optional)
•  Maximum safety pressure: 　6.0 KPa

•  Electronic controlled, electrical driven. No need of compressed air
•  Time cycled, volume constant and patient synchronized
•  Friendly interface makes operator convenient.
•  Setting scientific parameters leads to ideal clinical results

•  Airway pressure high alarm
•  Airway pressure low alarm
•  Setting error alarm
•  Malfunction alarm
