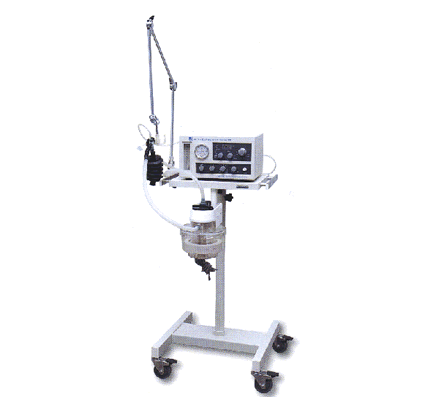

SC-Y200 infant ventilator is designed to meet the special needs of respiratory therapy and respiratory management for infants and children. This ventilator uses constant flow, pressure limit, time cycle ventilation mode.With the feature of compact in design and easy in operation. It is an reliable and elementary instruments in emergency and ICU rooms.
Technical Data
• Ventilantion Mode:CMV:IMV:CPAP:Manual Venliation
• Breath Rate: 1 ～ 120 bmp
• Flow: 3 ～ 20 l /min
• O2concentration:21 ～ 100% O 2 adjustable
• PEEP:0 -2KPa
• Inspiratory Pressure: 1 ～ 9KPa
• Inspiratory time:0.2 ～ 3Sec.
• Gas Supply Oxygen: 0.5 ～ 0.6MPa
• Gas Supply Air: 0.15~0.6MPa (From CS or air compressor)
• Basic Unit Dimensions: 190×240× 320mm (H×W×L)
• Weight: 7.5kg ( Without trolley)
