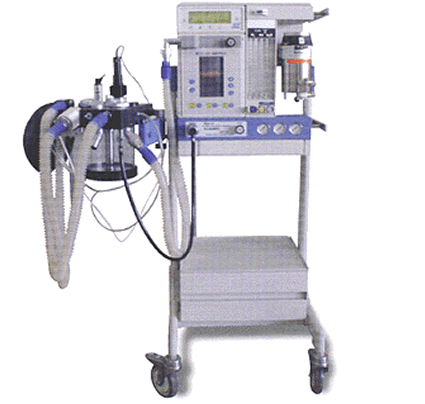

MHJ-IC Multifunction Anaesthesia Apparatus |
|
|
MHJ -1C is a new generation anaesthesia machine incorporating anaesthesia,respiratory and monitoring functions.With the adoption of modem art and somatological engineering in its unique designation,the machine is not only a state of art but also of great convenience in manipulation. |
| Anesthesia Machine |
It adopts a two-stage pressure regulator and a high precision dual-tube flowmeter to provide an accurate fresh gas output.Its build-in safety devices such as ORC system, oxygen deficiency alarm and N20 cut-off make anaesthesia more safe. The specially constructed inter-lock mechanism may guarantee only one of the two parallel vaporizers to be switched on at a time.The selected vaporizers from world famous companies as Drager 19.3, Ohmeda TEC-5 and Penlon Sigma Delta satisfy different requirements of customers.
With MHJ -1C it is possible to act low-flow anaesthesia because of its unique integrated circle system-a system that keeps the inhaled tidal volume from fresh gas. So it not only saves anaesthesia agent but also reduces pollution to operation room.
|
| Main Specifications |
• Flow:O2 0.1~ 15L /min
N2O 0.05~ 10L /min
ORC O2≥25%
• O2 Flush: 35~ 75L /min
• Oxygen deficiency alarm and N2O cut-off
when O2≤0.2Mpa,audible alarm occurs and lasts for at least 7 seconds
when O2≤ 0.14Mpa,N2O flow decreases correspondingly
when O2≤ 0.04Mpa,N2O flow is cut off
• Integrated breathing circle system
APL adjustment range:0.5~7kPa
CO2 absorber acpcity: 1.6L
|
| Vaporizer(Drager19.3) |
• Ambient temperature 15~ 35 ℃
• Input flow 0.25~ 15L /min
• Output back pressure:-10kPa~20kPa
• Output concentration:0.2~5Vol%±20%(OR±0.2%) |
| Anesthesia Ventilator |
A microprocessor-controlled ventilator,which is time-cycled and constant-volume,has a clear digital reading for all set breathing parameters.Because it is electric-driven and electric-controlled,the ventilator saves large amount of oxygen that is usually used only as driving gas. |
| Specifications |
• Frequency:6-60bmp
• Tidal volume:100~1100mL
• I:E ratio 1:1~1:9.9 adjustable |
| Monitor |
Respiratory monitor applies microprocessor to monitor Tidal Volume,Frequency,MV airway pressure,and inhaled oxygen concentration.It has real time curve display and a visual-and-audible alarms.A Chinese menu and single-key operation is userfriendly. A high-definition large screen with wide vision angle make all-directional inspection available. |
| Specification |
• Frequency:6-60bmp
• O2 measuring range 0~99%
• Tidal Volume:100~1500mL
• Minute volume:0 -40L /min
• Airway pressuer:0-9.9kPa |
|
