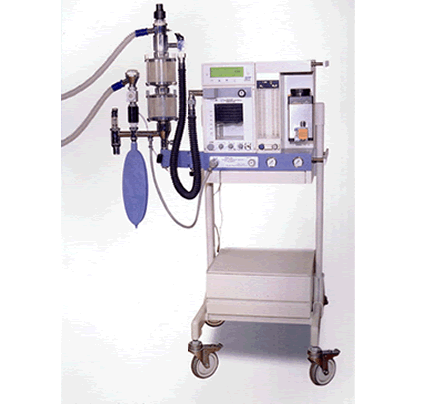

MHJ-IIC Multifunction Anaesthesia Apparatus

MHJ-IIC is a multifunctional anesthetic apparatus of new generation incorporating anesthetic, respiratory and monitoring functions.

• Be equipped with highly precised N₂O and O₂ flowmeters, and N₂O automatically shut off device.
• Anesthetic   ventilator  of volume
  -constant type. Electrically driven and controlled,suitable for both adults and children, provided with the flow and line alarms.
• Circle system saving greatly on carrier gas and on anesthetic, and adopt ISO standard connectors.

Be equipped with respiratory monitor capable of monitor on realtime tidal volume, minute volume, frequency of ventilation, and O₂ concentration degree, for assuring patient security.

•  Air source pressure: O₂:0.27~0.55Mpa
                                          N₂O:0.27~0.55Mpa
•  Adjustment range of flow:O₂: 0.1~ 15L /min
                                                  N₂O:0.05~ 10L /min
•  N₂O shut off:
         N₂O flow decrease correspondingly  when the O₂ supply  Pressure drops below 0.14 Mpa.
         N₂O auromatically shuts off when the O₂ supply Pressure drops below 0.04 Mps
•  Enflurane vaporizer:0.2-5vol%,adjustable
•  Alarm occurs and lasts for 7 seconds at least
•  Anesthetic Ventilator:
        Contral Mode:pneumatic-driven,electric-control,constant volume.time-cycled
        Air source pressure: O₂:0.27~0.55Mpa
        Tidal volume:200~1200 ml
        I:E ratio:1:1  1:1.5  1:2  1:3
•  Respriatory monitor:
        Tidal volume: 100~1500ml/min
        Respiratory frequency:6~60bmp
        MV:0~ 40L /min
        Oxygen concentration:0~100%
        Pressure:0~10kpa
