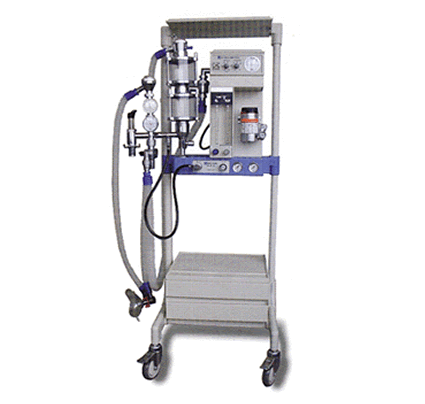

MHJ-IIIB1 Anaesthesia Machine

MHJ-IIIB1 is a standard anaesthesia machine with multifunctions which is composed of basic anaesthesia machine,anaesthesia ventilator and pressure monitorings. MHJ-III B1 is designed with techniques for reliability and safety and adopted a modular system for easier combination with various anaesthesia ventilators and monitorings to enhance is functions.

The standard MHJ-IIIB1 includes a pneumatic-controlled and pneumatic-driven anaethesia machine SC-M3A1,an anaesthesia circuit model IV and an economic anaestheisa vaporizer DZFG.MHJ-IIIB1 is suitable for use in various hospital for closed-anaesthesia,semi-closed anaesthesia and semi-open anesthesia,and for oxygen inhalation during resuscitation.

•  A flowmeter with ORC system ensures oxygen concentration not less than 25%.

•  With automatic N₂O cut-off

•  O₂deficiency alarm

•  SC-M3A1 anesthesia ventilator,with easy operation and low air consumption

•  Top plate intended for all kinds of monitors

•   Supply pressure:0.27~0.55MPa
•   Flow control: O₂: 0.1~ 10L /min
                             N₂O: 0.1~ 10L /min
•   ORC system: Oxygen not less than 25% within mixture gas
•   N₂O automatic cut-off:Active when oxygen pressure less than 0.1MPa
•   O₂ flush:50± 10L /min at O₂ pressure of 0.45MPa
•   Adjustment concentartion of Enflurane Vaporizer:0~5Vol%
•   Airway pressure limit range(APL): 0.5~7kpa
•   SC-M3A1 anaesthesia ventilator working type:Pneumatic-controlled and pneumatic-criven,time cycle,volume constant
•   Ventilation frequency:6~ 40L /min
•   Minute volume:3~ 18L /min
•   I:E ration:1:1.5 (fixed)
•   Gas consumption:less than 0.8L /min(for control part)
•   Dimensions:516×600×1370(L×W×H)
•   Weight: 60kg
•   No need of power supply. Only compressed oxygen for pneumatic driving and pneumatic control.
