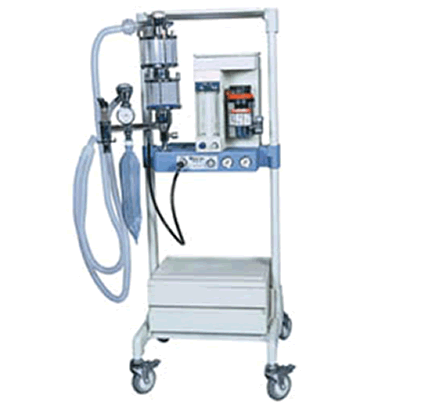

MHJ-IIIB2 Anaesthesia Machine

MHJ-IIIB2 multifunction anaesthesia machine, developed with reliability, safety, practicability, combination in mind,is a kind of up to date economic anaesthesia machine with modular system.Standard parts of MHJ-IIIB2 include anaesthesia ventilator SC-M3A,a compact vaporizer and airway gauge.It is possible to be furnished with other types of vaporizers and electronic monitorings to make an ideal multifunction anaesthesia machines for modern hospital.

•  ISOcircuit system adaptable to various monitoring
•  New type of flowmeter ORC system (O₂concentration no less than 25%),N₂O cut off safety unit.
•  Conpact Enflurane Vaporizer:Vaporized drug comcentration adjustable
•  The SC-M3A pneumatic anaesthesia ventilator was comparable small consumption of gas(one cylinder of Oxygen for six
　hours of operation),and precise parameters for control
•  Airway pressure gauge for real-time display of respiration of patient

•  Flow control range:O₂ （0.1～10L/min）
                                      N₂O（0.1～10L/min）
•  Gas Supply:0.27～0.55MPa
•  O₂Flush:35～70L/min
•  N₂O automatic cut-off:active when O₂ pressure lower than 0.1MPa
•  Non-compensation Vaporizer(Enflurane), Cncentration adjustable(0～5%)
•  Anaesthesia Ventilator:
       Control type:Pneumatically driven and
       Controlled,time cycle and volume constant
       Gas supply:0.27～0.55Mpa
       Frequency:6～40cycles/min
       I:E ratio:1:2（Fixes）
       Tidal volume: Adule bellow 150～1600ml
       Children bellow 50～150ml
       Safety Valve Working Pressue:6kPa
