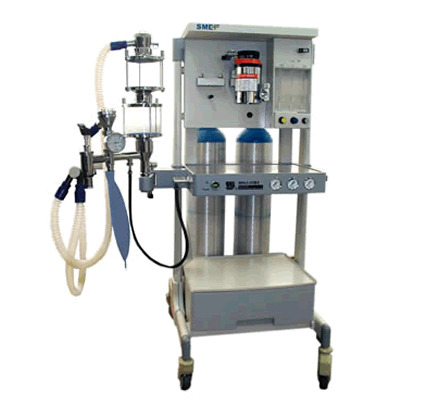

MHJ-IIIB3 Multi-Function Anaesthesia Machine |
|
| Features |
• Adopts a two stage regulator and a hight precision three-gas flowmeter with ORC system,ensures oxygen concentration not
less than 25%
• Automatic N2O cut off and an unique O2 deficiency alarm divice.
• With Enflurane or lsoflurane vaporizer,or both.
• Attachable cylinder bracket.
• Pneumatic-driven and electic-controlled anesthesia ventilator(Optional)
• With constant volume for adults and children(With Ventilator).
• Real time airway measurement
• Exhaled tidal volume and Minute vlulme measurement(Optional).
• With Two Vaporizers and Intergrated Circuit
• Stainless steel ansesthesia writing surface |
| Technical Data |
• Gas supply: O2:2.7-5.5mPa
N2O:2.7-5.5mPa
Air:2.7-5.5mPa
• Flow control range:O2:0.1-10L/min
N2O:0.1-10L/min
Air:0.1-10L/min;
• Oxygen deficiency alarm:as oxygen pressure is≤0.2Mpa,alarm occurs and lasts 7 seconds at least;
• N2O cut-off:N2O is cut-off completely,when O2 pressure is≤0.1Mpa;
• O2 flush:50±10L/min at O2 pressure 0.45Mpa;
• Enflurane vaporizer:0.2-5VOL%,adjustable;
• APL:0.5-7Kpa
• SC-M3A1 anaesthesia ventilator working mode:
• Pneumatic-controlled and pneumatic-driven,time cycled,volume constant(Optional)
• Dimension:1275×584×655mm
• Weight:80Kg |
| Standard Accessories |
Main Unit |
EM 01 001 |
Enflurane DZFG Vaporizer |
EM 02 001 |
Version IV Circuit System |
EM 03 001 |
Air Supply Hose |
EM 01 002 |
Common Gas Hose |
EM 01 003 |
Patient Pipeline |
EM 01 004 |
Breathing Bag |
EM 01 005 |
Real Time Pressure Gauge |
EM 01 006 |
|
| Optional Accessories |
Isoflurane DZFG Vaporizer |
EM 04 001 |
Cylinder Assembly |
EM 04 002 |
Anaesthesia Ventilator |
EM 04 003 |
Volummeter |
EM 04 004 |
APL Valve |
EM 04 005 |
O2 Reducer |
EM 04 006 |
N2O Rdducer |
EM 04 007 |
Air Hose |
EM 04 008 |
Integrated Circuit |
EM 04 009 |
|
| Pictures |
|
|

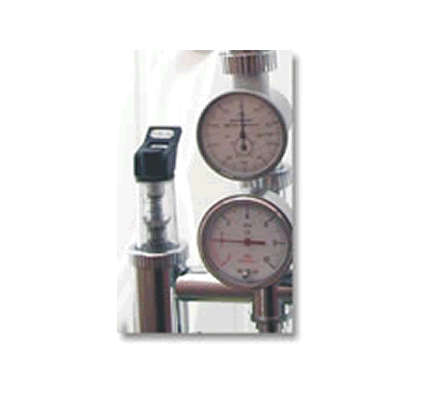

Volumemeter and Pressure gauge
(Optional) |

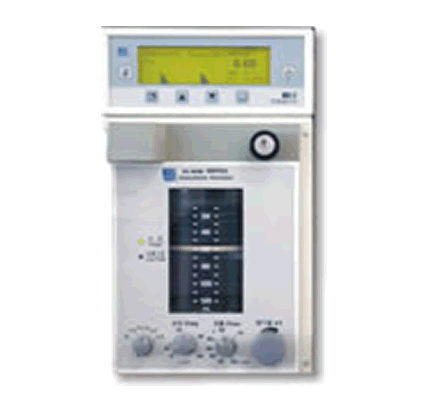

Respiratoy monitor and Anaesthesia ventilator
(Optional)
|
|
|
