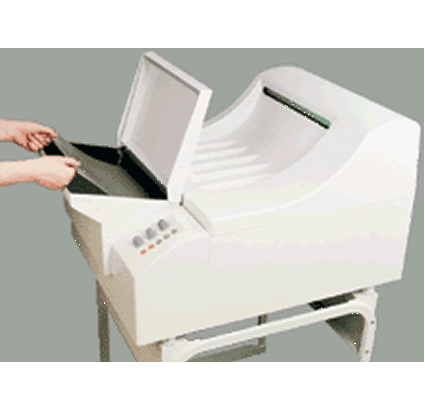

HQ-350XT X-Ray Film Processor |

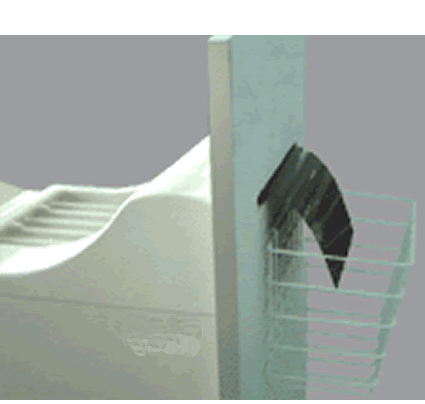

HQ-350XT is fit for hospital or operation room with over 150 pieces of film processed per day. The machine features small footprint, easy operation and light chemicals consumption. The transport system and dry system incorporate advanced design and imported material, which guarantee the machine’s processing quality and reliability. With two output ways for film processing (back output is optional and set before leave-factory), it fits for both dark-dark room processing and dark-light room processing.
• Automatic water level control:no risk of washing water flooding.

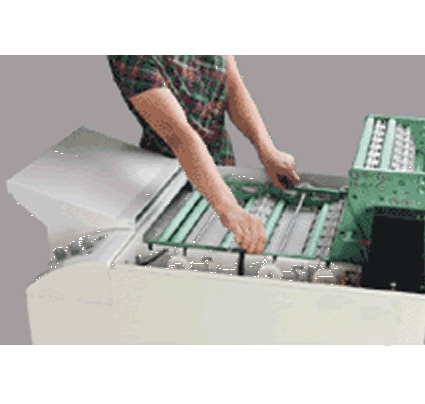

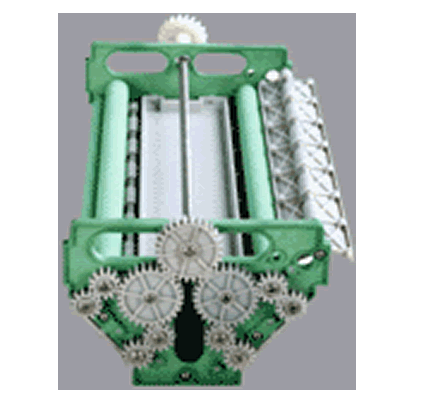

• No turn guide in the rack:no risk of film jamming or scratch.
• Chemical filtration:improve developing power,and enrich the film density.

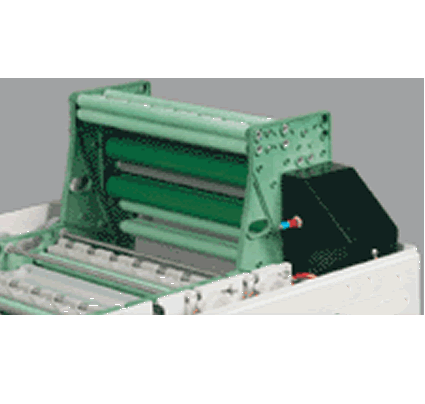

• Vortex drying fan:dry the film efficiently during high speed processing.
• Replenishing and waste tanks with sensors:exempt you from taking care of the chemicals'condition from time to time. |
|
Specification |
Film format |
3 × 5"-14 × 17"(7.6 × 12cm -37 × 43.5cm ) |
Film applicable |
X-ray,CT,MRI and etc. |
Time of developer |
3 speed: 25s, 35s, 45s |
Cycle time |
90s |
127s |
160s |
Capacity(14 × 17") |
70pcs/hour |
50pcs/hour |
40pcs/hour |
Chemical Temp.Range |
28— 38 ℃ (± 0.5 ℃ ) |
Drying temp.Range |
50- -65 ℃ (± 2 ℃ ) |
Tank volume |
5.5L |
Replenishment |
Automatic(according to area monitored by infra-red sensors)/Manual |
Washing |
Controlled by solenoid valve,starts only when feed in film |
Process procedure |
Developer->Fixer->Washer->Dryer |
Power |
220v/50Hz,3KVA |
Dimensions |
86×58× 120cm |
|
