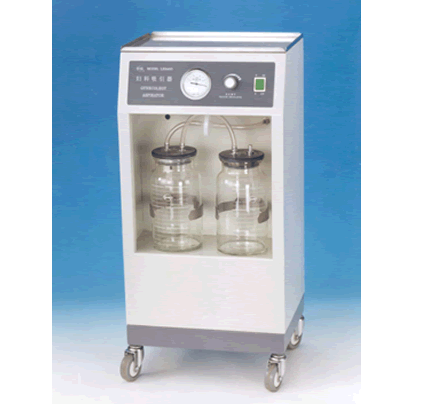

LX840D Gynecology Aspirator

LX840D Gynecology Aspirator is special designed for gynecological operation in hospitals and clinics,is a novel transportable medical suction unit,applicable to the artificial abortion of early pregnancy,the extraction foetus when puerpera childbirth,and removing postpartum remainder.Moreover,wide variety of applications is also recommended in other fields.

Ⅰ.Features

•   Maintenance free,oil-less pump,high flow rate,without pollution by oil mist.
•   Operating tray mounted on top of the unit case provides facility.
•   Large-bore bottle with stopper having sealing ring is convenient to open and clean.
•   Overflow protection prevents liquid entering pump.
•   Transparent non-toxic PVC hoses and unique connections are easy to observe and link.
•   Air filter equipped reduces bacterium in absorbed liquid to environmental pollution.
•   Hand-switch and foot-switch installed in parallel can selected at will.
•   Stability and durability,low noise,safe and reliable to operate.

II. Specifications

•   Max Vacuum:≥0.08MPa(600mmHg)
•   Free air flow:≥40L/min
•   Liquid storage bottle:1500ml×2pc
•   Vacuum adjustable range:0.02~0.08Mpa(150~600mmHg)
•   Noise level:≤60dB(A)
•   Input:250VA
•   Power supply:AC 220V±10%.50Hz
•   Working system:continuous operation with intermittent loading
•   Dimemsion:480mm×420mm×880mm
•   G.W.: 30.5kg
