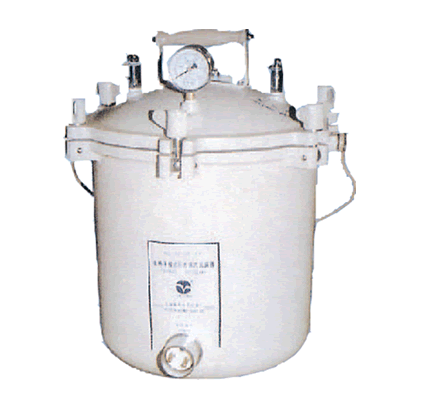

• The main body of this sterilizer is made of high quality ALUM alloy, The drum of this sterilizer is pressed and rolled to shape.
• The lid of this sterilizer is installed with safety valve, exhausting valve, pressure gauge, which can keep temperature and
pressure constant automatically.
• The electrothermal tube is immersed. In case of no power, sterilizer can be heated by gas stove to ensure flame collect in
ф 200 mm circle.
• Mode YXQ.SG 41.280A is ordinary model which is simple constructed, easy maintenance. Mode YXQ.SG41.280B is low
water model which protect the electrothermal tube, power is cut off and buzzer gives a alarm.
• With advantages, such as, simple operation and portability the sterilizer is suitable for clinics, laboratories and tour clinics to
use.
• The sterilizer is applied to surgical instruments, dressings, flasks and so on to sterilize.
MAIN TECHNICAL PARAMETER |
The working pressure |
0.15Mpa |
The working temperature |
126 ℃ |
Chamber capacity |
24.4L (ф 308mm × 320mm ) |
Drum capacity |
16L (ф 280mm × 260mm ) |
Power supply |
2kW/Sigle phase 220V~50Hz |
Net weight |
12kg |
Measurement |
450mm × 430mm × 560mm |
|
