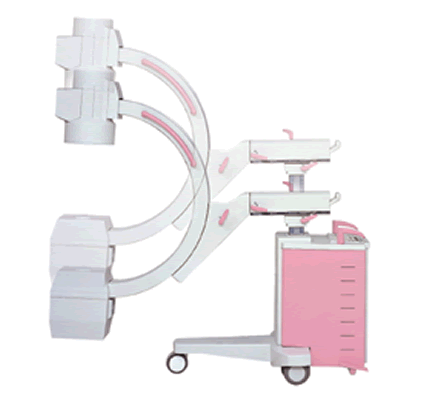

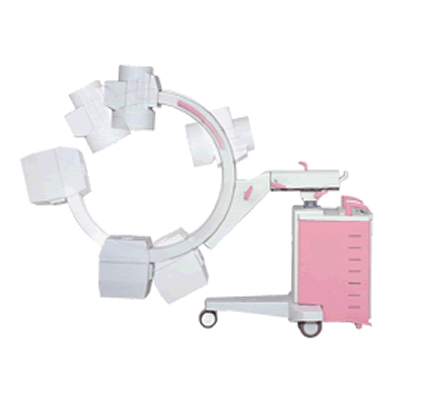

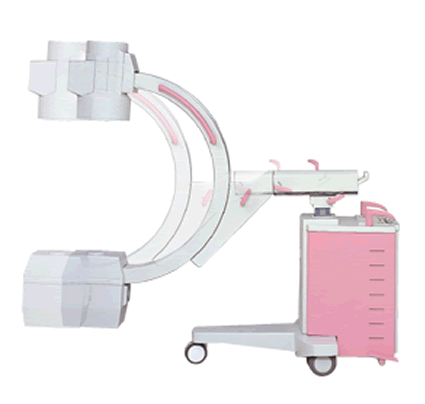

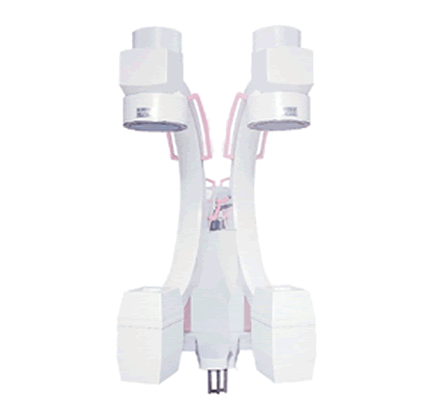

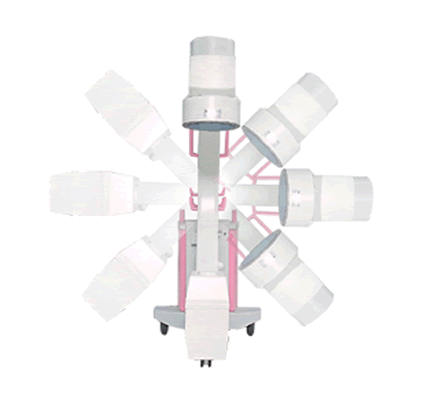

HMC-36 High Frequency Mobile C-arm X-ray Unit

Feature:

•  Digital H.F. generator, steadily and effective high voltage mostly reduce the radiation to doctor and patient.
•  9” integrated CCD imaging system with LIH.
•  Ergnomics designed, compact structure, easy to operate and move.
•  Sensitive touch button, digital display.
•  Applied to ward, orthopaedics, surgical and operation room.
•  Microprocessor control with auto-diagnostic function, error code display.

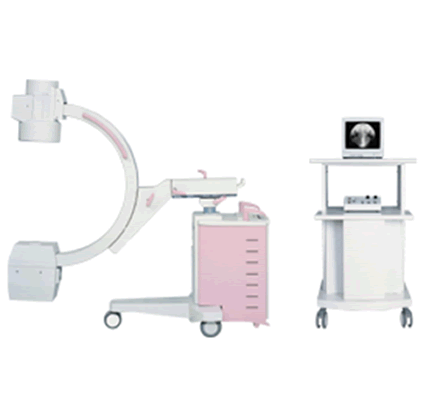

Standard Configuration:

•  Unit body (including C-arm) 1 set
•  Generator (including square field collimator) 1 set
•  9" Ⅰ . Ⅰ .integrated with CCD (including image control) 1 set
•  14" high-definition monitor 1 set
•  Monitor cart 1 set

Option:

•  Image storage (7 frames storage, positive/negative reverse,
•  dual-image on one screen)
•  Digital workstation for image acquisition and storage
•  Mobile operating table

•  H.T. generator Max. power: 3.6kW
•  Radiographic kV 40 ～ 110kV (1kV/step)
•  Radiographic mA 10 ～ 60mA (in step)
•  Radiographic mAs 1 ～ 250mAs (in step)
•  Fluoro. kV 40 ～ 110kV (1kV/step)
•  Fluoro.mA 0.3 ～ 5.0mA (in step)
•  Tube focus size Large 2.0mm small 1.0mm
•  SID 950mm
•  Treatment space 650mm
•  Monitor 14" (one set)
•  Power supply 220V/50Hz ≥4kVA
•  internalresistanec ＜ 1.0Ω
