200mA Radiographic X-ray Unit FY21-1 |
| Application: |
This unit can make routine radiography, bucky radiography.
|
| Features |
| • One-table, one-tube.
• Single-phase, full wave, high voltage rectification.
• Protective devices for X-ray tube capacity, anode-starting.
• With spring-oscillating buck under the table.
• Ceiling-floor rail type tube stand with safety device. |
| Composition |
H.T generator: FS131-1 (generator for F30-IIF) |
1 set |
Radiographic table: SC2-1 (table for F30-IIG) |
1 pc. |
X-ray tube assembly stand : ZZ-2A (table for F30-IIG) |
1 set |
X-ray tube assembly: XD51-20.40/100 |
1 pc. |
Collimator: XS1-1 |
1 pc. |
H.T cable: DL5008-1A |
1 pair |
|
| Technical Specification |
Radiography |
tube voltage: 50—100KV adjustable continuously |
tube current: 30—200mA adjustable by step |
exposure time: 0.05—6s 23 steps |
sliding in longitudinal (along ceiling and floor): 1800mm |
Tube stand |
Transversely movement (along rotation arm): 700mm (from focus to center of stand) |
Vertical movement (along stand): 1270mm (from focus to the ground) |
Radiographic table |
tabletop |
longitudinal: manual |
lock mode |
electromagnetic lock |
bucky (oscillating type) |
density: N40 |
focus: f0 100 |
ratio: r8 |
X-ray tube
assembly |
model: |
XD51-20,40/100 |
focus: |
1×1/2× 2mm |
speed: |
2800r/min |
Power supply |
voltage |
single phase: 220V/380V |
capacity: |
13kVA |
frequency: |
50Hz |
inner resistance: |
380V 1Ω 220V 0.3Ω |
Bucky unit with
fixed grid |
Film format: |
8" x 10" ～ 14" x 17" |
grid |
Density: N40, Focus: 180cm , Ratio: r12 |
|
| Pictures |
|
 |
|
|
Control console |

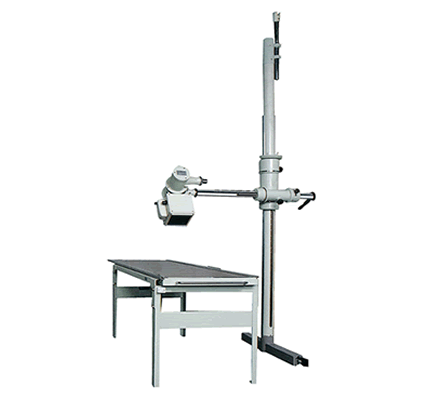

Radiographic Table |
|
|
top |
|
