Computer controlled.
• Automatically distinguish line power and frequency, and auto. compensate power fluctuation.
• Assure output precision, improve image quality, simplify operating procession.
Specification:
• Improve performance and stability
• Simply operate and steadily output by adopted computerized control.
• Self-Diagnosis and Error Code Display
• The system has 23 error codes. Once failure occurs, error code is automatically displayed on the control panel for
maintenance.
• Auto. Tube Capacity Protection
• Besides 3-point control (kW, mA, Sec), exposure parameters can be set with kV, mAs.
• According to the maximum capacity of tube and minimum exposure time can fix the upper limit of exposure mA and protect
the tube.
• Preset Exposure Parameters
• The system provides 90 programs, which can be modified, corrected and stored according to exposure position and patient
size
|
| Standard Composition:

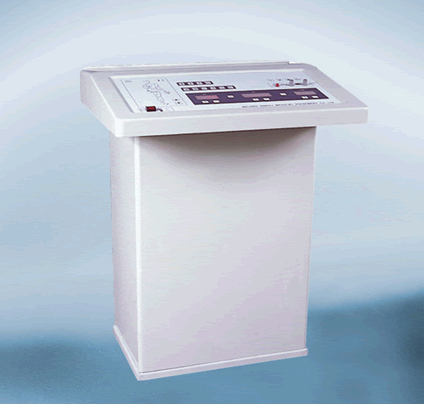

• Microprocessor controlled H.T. Generator FS202-3
• Diagnostic Table ZC15X-2

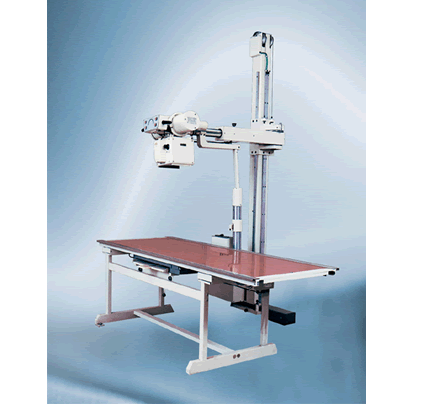

• Radiographic table SC3-2
• X-ray tube stand ZZ-3
Specification:
• Power supply: 380V AC±10% single phase
• Frequency: 50Hz
• Inner resistance: 0.3Ω
Setting range:
• Radiography: Tube voltage: 50~125kV
• Tube current: 30~300mA
• Exposure time: 0.02~5s 23 steps
• Fluoroscopy: Tube voltage: 40~110kV
• Tube current: 0.5~5mA
Option:
• TV system
• Vertical bucky stand |
