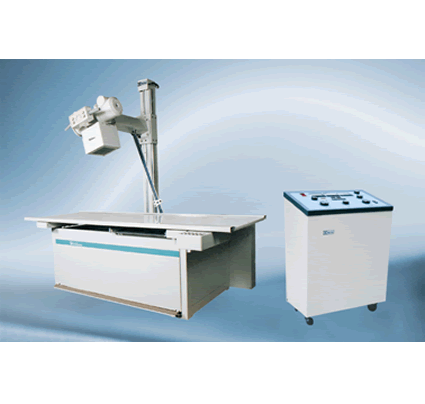

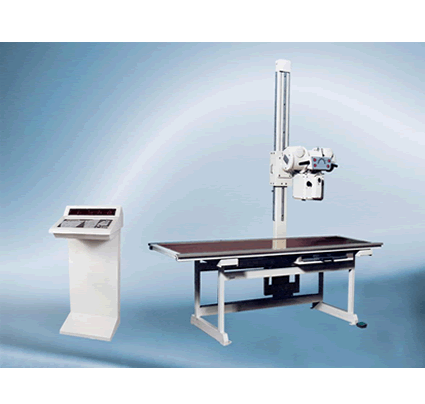

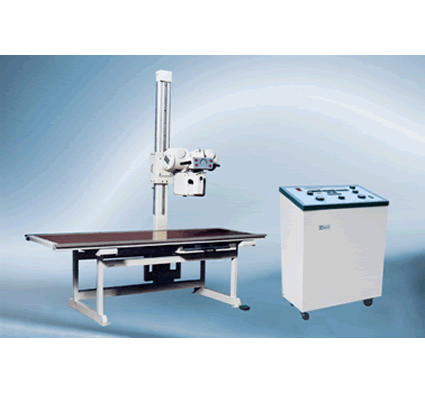

FY51 Series 500mA Radiographic X-ray Unit

Application:

•  The series of this products provided many kinds of selections for customers. It is radiographic X-ray unit which can make
    routine radiography, bucky radiography, linear tomography and tilting radiography.

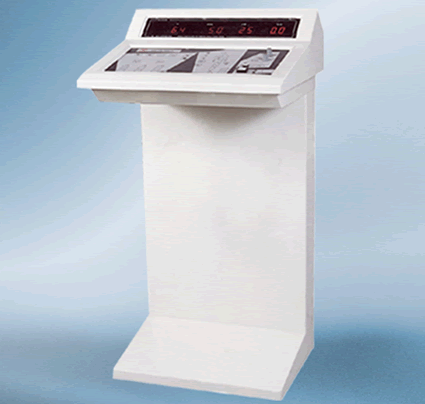

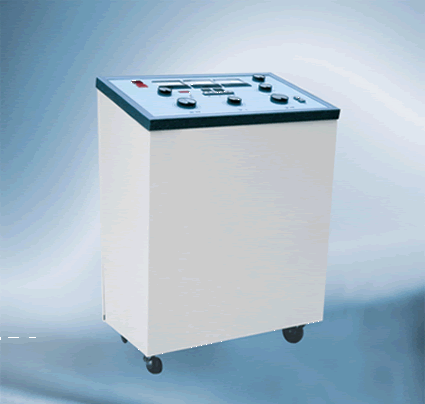

Automatic and manual control programs:

•  Programmable radiographic functions, provides 90 memory programs for radiography. The parameters can also be
   selected manually.

Anatomical exposure selection:

•  Exposure parameters can be set based on patient size and exposure positions. The parameters can also be corrected and
   stored.

X-ray tube protection:

•  X-ray tube heat capacity and load capacity are managed and protected by computer programs, to allow maximum utilization
   of the tube capacity and radiographic parameters.

Safety function:

•  The error self-diagnosis function can determine problems quickly and accurately. It can execute protection automatically and
   display error code.

Features:

•  One-table, one-tube.
•  Single-phase, full-wave, high voltage rectification.
•  High voltage switch on/off with SCR.
•  Protectors for X-ray capacity, anode starting and exposure time.
•  Integrated radiographic table without ceiling-floor rail, makes installation easier.
•  The tabletop can move longitudinally and transversely with electromagnetic locks and foot switch controls.
•  X-ray tube assembly can rotate freely and stay at any position. It can combine with vertical bucky stand.
