Microprocessor Control
Digital Display
Advanced programmed controlled:
Programmable functions, provides 90 memory programs for radiography. The parameters can also be set manually.
Safety function:
The error self-diagnosis function can determine problems quickly and accurately. It can execute protection automatically and display error code for maintenance.
Integrative designed console.
Anatomical exposure position selection:
Exposure parameters can be set based on patient body size and exposure positions. The parameters can also be corrected and stored.
X-ray tube protection:
X-ray tube heat capacity and load capacity are managed and protected by computer programs, to allow maximum utilization of the tube capacity and exposure parameters.
Two-table two-tube system is an optionalchoice.
• Large range of SFD movement, reach to 74cm . Gastro-intestination allows fluoroscopy and radiographic exposure from
esophagus (including throat) to abdomen without patient movement.

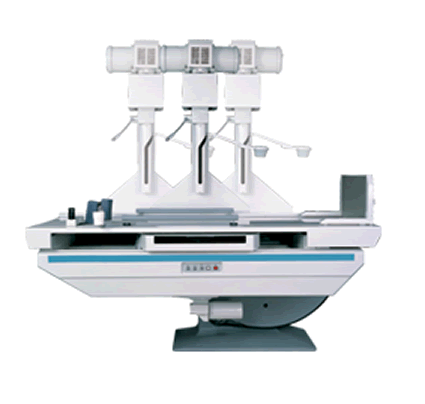

• SFD can move to 50cm from the tabletop, suitable for the fluoroscopy and radiography of endoscopy and bronchus.

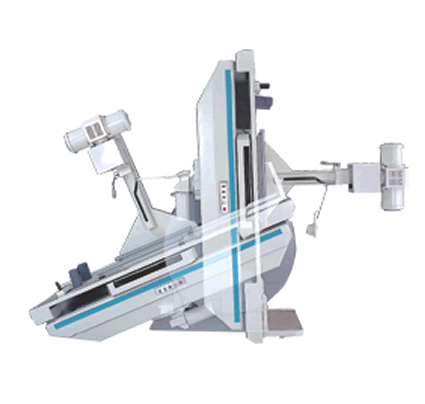

• Tilting range of the table is +90°~0°~-25°. It allows digest examination and other special examination.
• By bedside switches, table can be adjusted easily, enables quickly surgical and plastic surgery.
• TV system equipped with high definition camera and monitor, to acquire high resolution images.
• Option ZC25SY-2 can do chest radiographic (focal distance 1.5m ).
Standard Configuration:
• X-ray H.T. generator

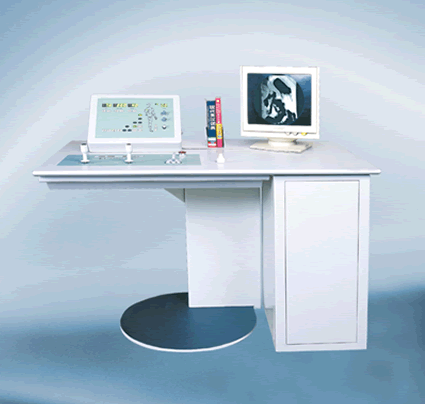

• Remote controlled console: Microprocessor controlled 500mA

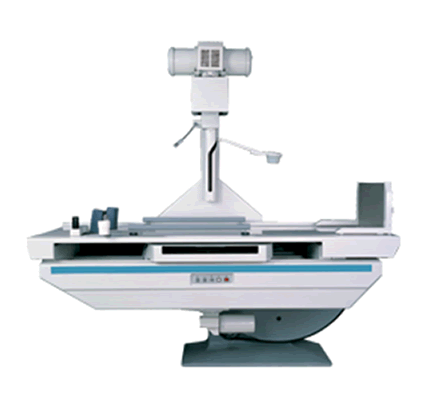

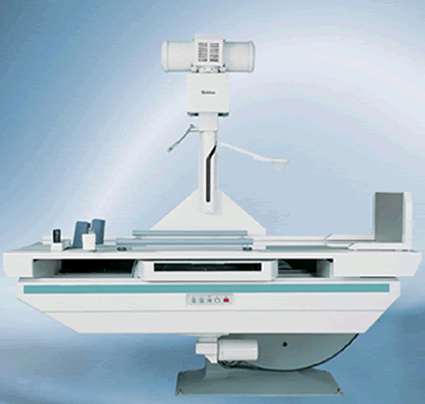

• Diagnostic table: ZC25SY-1 remote controlled diagnostic table with cassette
• Image Intensifier: 9” image intensifier
• Monitor: TV monitor 17”
• X-ray tube assembly
• H.T. Cable
Option:
• ZC25SY-2 remote table
• Special radiographic table
• The unit combine with two tubes selection to expand the clinical
• requirements.
|
