High Frequency Technology Intelligence IGBT Modules
Digital acquisition, ensure high quality image
• Adopts digital camera, to ensure high clarity digital image.
• Combine with high performance X-ray tube assembly.
Latest design 50kW high frequency generator
• Because of its new concept of pulse fluoro function, enhance the image quality and reduced patient radiation. And also fit to
the requirements of digital image system.
Excellent X-ray image
With precise radiographic time, exposure time as short as 1ms.
Fluoroscopy and spot film became intelligence
• Adopts computer controlled system, all radiographic parameters can be set automatically. Over 600 programs are provided
for adults and pediatrics. Various clinical requirements can be satisfied.
Auto. exposure controlled function
• The latest design of ABC system complies with FDA standards: protects physician and patient from unnecessary X-ray
radiation. Auto exposure voltage compensation system helps to acquire high clarity images of any patient size. Combine
interface of Ion chamber to realize the AEC function of general radiography.
High resolution monitor
17 ＂ high resolution monitor to improve the clinical diagnosis.
Safety function
The system has self-diagnosis and error code display.
• Microprocessor controlled system.
• Various tables for selection, to realise all gastro-intestinal examination.
• High-power generator, exposure speed up to 30fps, supports digital imaging system to do interventional diagnosis.
• Unique multi-speed function of sensitive screen, AEC can be performed when using different cassettes equipped with
different sensitive screens.

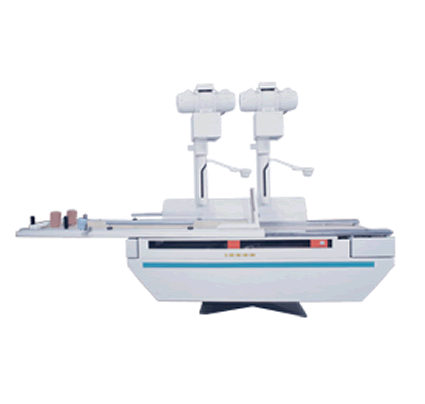

Digital, Intelligence and Economic Remote Controlled Table System
Negative tilting 25°easy perform interventional examination.
The movement of table-top is smoothly
The movement of table-top flexible and smooth, exact positioning, making patients feel comfortable.
Large range of spot film device movement
• The movement of spot film device is 74cm in longitudinal direction, during gastro-intestination allows fluoroscopy and
radiographic exposure from esophagus (including throat) to abdomen without patient movement.

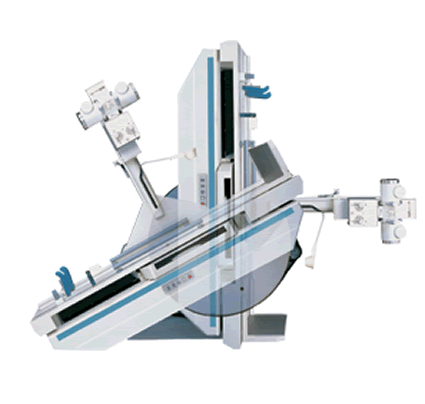

• Diagnostic table can tilt smoothly
• from +90°~ -25°. The operation
• has excellent function.
• The FFD can be changed from
• 110cm to 150cm .
Various Tables

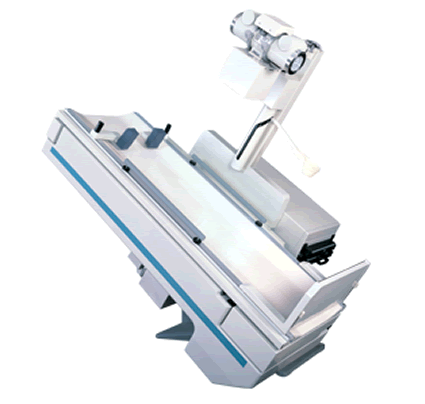

Cassette less table
• The film feeding system and receiving system can auto. carry out serial radiography without cassette 3 film sizes
( 10” × 12” , 11” × 14” , 14” × 14” ) can be selected. The supply magazine can be loaded up to 50 films. Patient
name and number can be printed on the film. The table tilting is 90°/-45°.
• This large negative tilting angle make more convenience in clinic

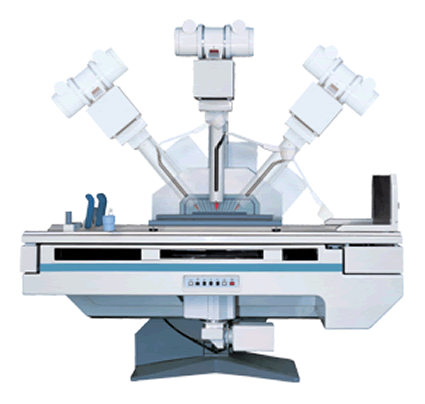

Diagnostic table with variable focal distance
• Swing radiography the swing of X-ray tube assembly at ±30°can fit to the requirements of special exposure.
• Adjustable focal distance. The three kinds of distance from X-ray tube to film: 110cm , 120cm , 130cm .
• Adjustable focal distance and swing radiography: ZC45SY-2

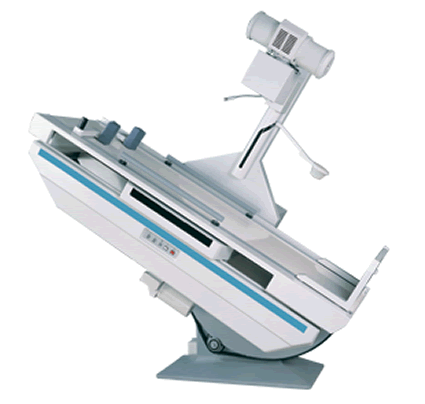

Multi-purpose and smoothly
• ZC45SY serial diagnostic table can move 1.5m in longitudinal, suitable for multi-purpose examination and diagnosis.
• The radiographic system of ZC45SY serial spot film device can move more than 600mm toward head-end, without table top
movement to realize a complete radiography for gastro-intestinal examination.
• Convenient for endoscope bronchography examination during fluoroscopy.
• There are Switches mounted on the side of the table for table and spot film device control. |
