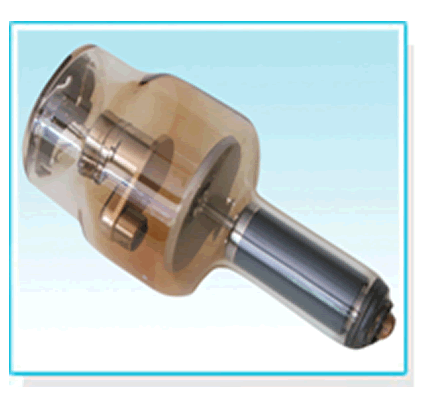

XD52-30.50/125 XD52-30.50/150 |
| Application |
It is designed for main applications used in x-ray equipment for medical diagnosis. |
| Ⅰ.Technical Data |
Max Operating Voltage(kV) |
125/150 |
Filament Characteristics （ V ） |
(small Filament) Ifmax= 5.5A . Uf=7 ～ 9
(big Filament) Ifmax= 5.5A . Uf=10 ～ 13 |
Target Material |
W |
Target Angle |
17.5° |
Target Diameter(mm) |
90 |
Revolution Speed(r/min) |
2800(50Hz) |
Inherent filtration(mmAl) |
0.8 ～ 1.2 |
Weight (≤kg) |
1.75 |
Nominal Focal Spot Value |
1.0/2.0 |
Max Power （ 0.ls ） (kW) |
30/50 |
Anode Heat Storage Capacity(kJ) |
140(190kHU) |
Max Continuous Power(W) |
490 |
|

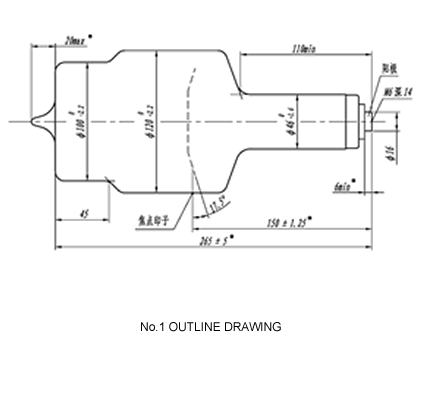

| Ⅱ.Outline Drawing |
XD52-30、50/125
XD52-30、50/150
Outline Drawing No.1 ：
|

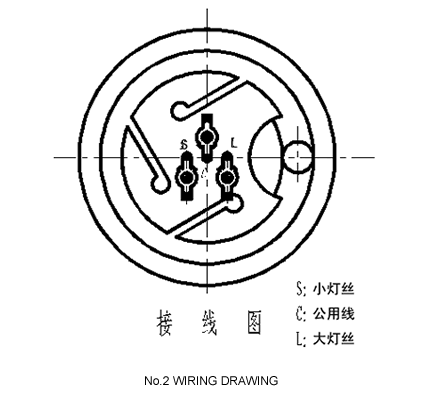

| Ⅲ.Wiring Drawing |
XD52-30、50/125
XD52-30、50/150
Wiring Drawing No.2;
|
| Ⅳ.Characteristics |

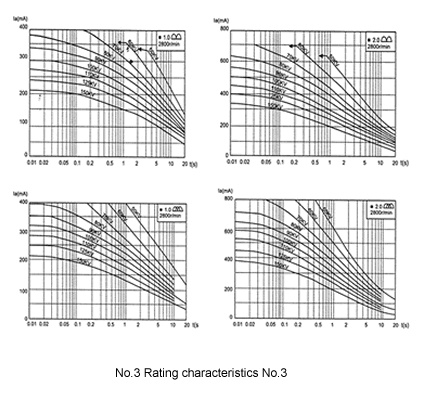

| 1.Rating characteristics No.3:

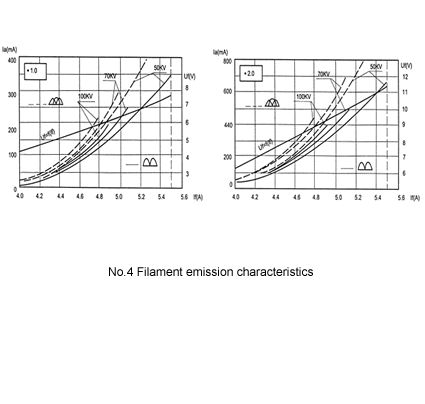

2.Filament emission characteristics No.4:

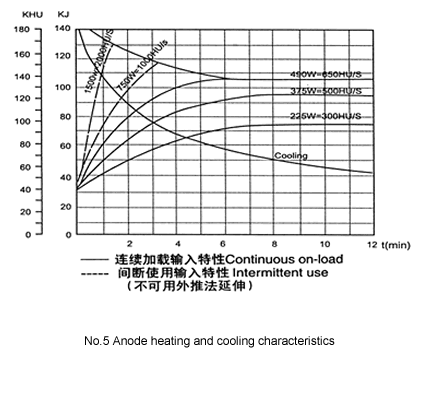

3.Anode heating and cooling characteristics No.5
|
| Ⅴ.Using Method And Phonetic Notation |
• The tube must be installed and operated by professionals. Be careful during the process of transportation and installation
avoiding the damage of the tube.
• If oil is used as insulation and cooling agent, compressive strength of the oil shouldn't be lower than 35kV/ 2.5mm .
• Clean and dry the tube body case before installation.
• For the first time operation or reoperate after more than four weeks, the tube should be trained before operation according
to the following steps. Begin with half of the maximum working tube voltage keeping the perspective electric current and
increase to the maximum working tube voltage with the speed of more than 5kV/min and keep it there for 3 minutes. If the
electric current is not stable or electric phenomenon occurs, the tube voltage should be reduced first and increased after it
becomes stable.
• Reduce the tube voltage before shut down. |
| Ⅵ.、Reserve And Transport Condition |
• Generally the packed X-ray tube should be stored in corrosive gas free and airy rooms with 5 ℃ or higher temperature or
80% or lower relative humidity.
• The transportation requirement is according to the order contract. |
| Ⅶ.Quality Promises After Selling |
• Under regular storage, transportation and application condition, if there is any problem caused by the quality of the packed
X-ray tube within 12 months since the release date; our company will replace the products for free. |
|
