X-ray Generator
• Generator Type:High Frequency Inverter 40kHz
• Input Power: Single phase 220VAC, 50/60Hz
• Radiographic Ratings:Large Focal Point 20-35KV/1-300mAs
• Small Focal Point 20-35KV/1-100mAs
• Power Rating:1.2kW
X-ray Tube
• Model: Fixed anode, China Hangzhou XD7(X791)
• Focal Spot Size: Dual Focus 0.5mm
• Target Material:Molybdenum (Mo)
• Port Material:Beryllium (Be)
• Anode Heat Storage: 63KHU
• Anode Cooling:Air cooling
• Filtration: Mo( 0.03mm ),Al( 0.5mm )
Radiographic Stand
• C-ARM:Vertical Movement: 60cm (70~ 130cm ) Motorized
• Rotations Deg:±180° Motorized (Deg.Data Display)
• SID: 65cm
Cassette Image Receptor
• 18× 24cm
Line Voltage
• 220Vac@ 15A ,Single phase
Weight
• 200kg
Bucky: (Optional)
• Bucky Device:18× 24cm Bucky drive mechanism
• Grid Ratio:3.5:1 ,30 Line/cm
Comfortable Compression(Optional)
• When some degree of pressure is required for radiography, it allows you to presser the appropriate pressure(up to a
maximum of 20kg )and is equipped with MICOM Control's Soft-touch system which is designed to minimize the discomfort
of the examine with in the pressure range.
• Tissue Compression: Manual and Motorized (Max 20kg )
• Compression Force and Thickness Data Display
• Micom Control's Compression
• Automatic Release
Intelligent Automatic Exposure Control(AEC)(Optional)
• With the Automatic Exposure Control system, it is possible to produce images with reliable intensity suitable for and film,
screen, or method of radiography.
• Furthermore, it greatly enhances the convenience of radiography by embedding the Full-AEC function which is capable of
utilizing the Auto kV
• Type:Solid-State Detector or PMT Detector
• Microprocessor Control
• AEC Mode:Full AEC(Auto kV)
• Semi AEC (KV Select)
• Manual (kV,mAs Select)
• Density Adjustment:10 density steps
Specification:

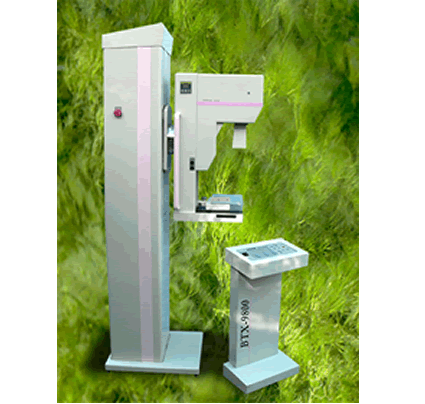

BTX-9800 |
BTX-9800B |
BTX-9800B1 |
BTX -9800A |
BTX -9800A 1 |
X-ray Generator |
|
Generator Type |
High Frequency Inverter 40kHz |
Input Power |
Single phase 220VAC 50Hz/60Hz |
Radiographic Ratings |
Large Focal Point
20-36KV/1-600mAs |
Large Focal Point 20-35KV/1-300mAs |
Large Focal Point 20-38KV/1-600mAs |
Small Focal Point
20-35KV/1-100mAs |
Small Focal Point 20-35KV/1-100mAs |
Small Focal Point 20-35KV/1-100mAs |
Power Rating |
3.6kW |
1.2kW |
4.5kW |
X-ray Tube |
|
|
Fixed anode |
|
Model |
VARIAN
M147 |
TOTHIBA
E7290AX |
China Hangzhou
XD7 （ X791 ） |
China Hangzhou
XD60 |
Focal Spot Size |
0.1/ 0.3mm |
0.1/ 0.3mm |
0.5/ 1.0mm |
0.2/ 0.4mm |
Target Material |
Molybdenum (Mo) |
Port Material |
Beryllium (Be) |
Anode Heat Storage |
300KHU |
63KHU |
300KHU |
Anode Cooling |
Air cooling |
Filtration |
Mo （ 0.03mm ）. Al （ 0.5mm ） |
Radiographic Stand |
C-ARM |
Vertical Movement |
60cm (700~ 1300mm ) Motorized |
Rotations Deg |
±180° Motorized (Deg.Data Display) |
SID |
65cm |
Comfortable Compression |
Manual and Motorized (Max 20kg )
Compression Force and Thickness Data Display
Micro Control's Compression
Automatic Release |
Cassette Image Receptor |
Bucky Device ： 18× 24cm Bucky drive mechanism
Grid Ratio ： 5:1 .
30 Line/cm |
18× 24cm
Grid Ratio ： 3.5:1
30 Line/cm |
18× 24cm
Grid Ratio ： 5:1
30 Line/cm |
Automatic Exposure Control （ AEC ） Mode |
Full AEC （ Auto kV ）
Semi AEC (KV Select)
Manual (kV . mAs Select) |
Density Adjustment |
16 density steps |
10 density steps |
16 density steps |
Auto Standard Positioning system |
Yes |
Cytoguide Biopsy Unit |
options |
| Weight |
240kg |
180kg |
240kg |
Accessories |
Face Protection
Film Marking Device
18× 24cm Bucky Device & Compression Paddle
Spot Compression Paddle
3 Precise Collimation Plate
Exposure telecontrol |
Options |
18× 24cm Film cassette (Kodak Min R . Kodak Min R2000)
24× 30cm Bucky Device & Compression Paddle
24× 30cm Film cassette (Kodak Min R . Kodak Min R2000)
Magnification Device
Mo/Rh Filtration
Cytoguide Biopsy Unit （ options ）
Auto Film Changer 18× 24cm (Kodak Min R . Kodak Min R2000)
CR cassette （ Kodak . AGFA,or TOTHIBA ） |
Line Voltage |
220Vac@ 25A |
220Vac@ 15A |
220Vac@ 25A |
|
