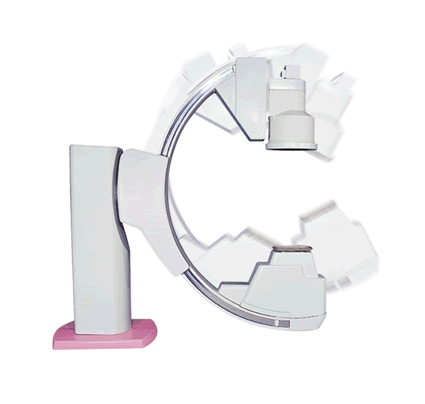

The CGO product is a new digital C-arm system which leads a renovation in the field of angiography and interventional treatment.
The flexibility of the CGO is backed by performance. Operation is easy, thanks to ergonomic controls and display screens, it is an indispensable diagnostic instrument at a modern hospitals.
All mechanical design, new standard, unique safety protection and collision protection set, make doctors and patients fell more comfortable and safer during operations.
Outstanding combination assures high quality images at lowest effective dose—an important consideration during long interventional procedures.

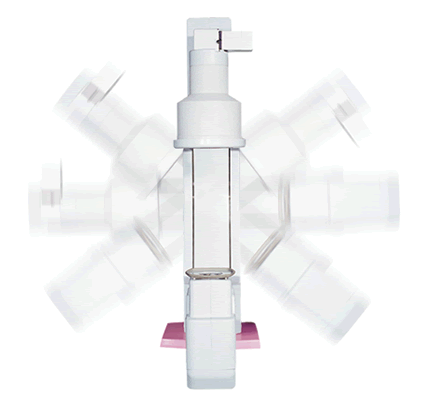

A wide rang of beam projections and patient positions allow application flexibility, while more working clearance facilitates access for clinicians and other staffs.
HF 80kw Generator Control System • Computer controlled, popular touch screen console.
• Real-time and close-loop system guarantees the high accuracy and repeat of tube current.
• Accurate radiography time, minimum time 1ms.
• Pulse fluoroscopy function improved image quality, reduce X-ray dose, protect doctor and patient and meet the digital
imaging requirements.
Ergonomic Mechanical Design
• Efficiency begins with ergonomic, easy to use design. Specially shaped controls facilitate tactile understanding and use, to
let you concentrate on the patient.
• The C-arm speed-change movement provides safe, silent movement and easy, precise positioning, and the system takes
the newest safety standard with collision protection set.
• The patient table features four way flotation, for easy accurate patient positioning.
• A multi-layer filter in the X-ray tube’s collimator for improved image quality.
• Carbon fiber top allows for optimum fluoroscopic imaging.
• Stepping function table-top to meet the requirements of lower-limbs angiography
• Collimator with rectangle field, circle field and density indicator could bring the best image.
• The system allows whole body clinical diagnosis and interventional treatment.
12” Image Intensifier• Triple-field: 12”/9”/6”
Excellent Image Quality• 1024×1024 digital integrated CCD system improves diagnostic ability.
• Through real-time process to get instant DSA image and transparency image.
• Multi-model digital process, excellent function and perfect image.
Three Acquisition Modes• Digital fluoroscopy acquisition
• Digital spotting acquisition
• Digital cardiac image cine acquisition
Medical Monitor
• 1249 line progressive scanning display.
• 100Mhz width, high resolution image display.
• No flick 73Hz scanning frequency
Silent High-speed X-ray Tube with Oil Cooling System
• High-speed tube, special application for Cardiac/Angiography.
• 1.5Mhu |
